1 Introduction

This document briefly explains the steps to install and run Samadii-Plasma application on a Virtual Machine deployed in Azure Cloud Platform and presents the performance results.

This recipe document covers the following topics: -

• Deploy & connect a required virtual machine on Azure platform.
• Install required NVIDIA drivers in virtual machine.
• Install Application on virtual machine.
• Install license manager for current application
• Performance results of current application on azure virtual machine
• Azure consumption
• Summary

2 Deploy Virtual Machine on Azure Cloud Platform

2.1 Azure Cloud Architecture for Application

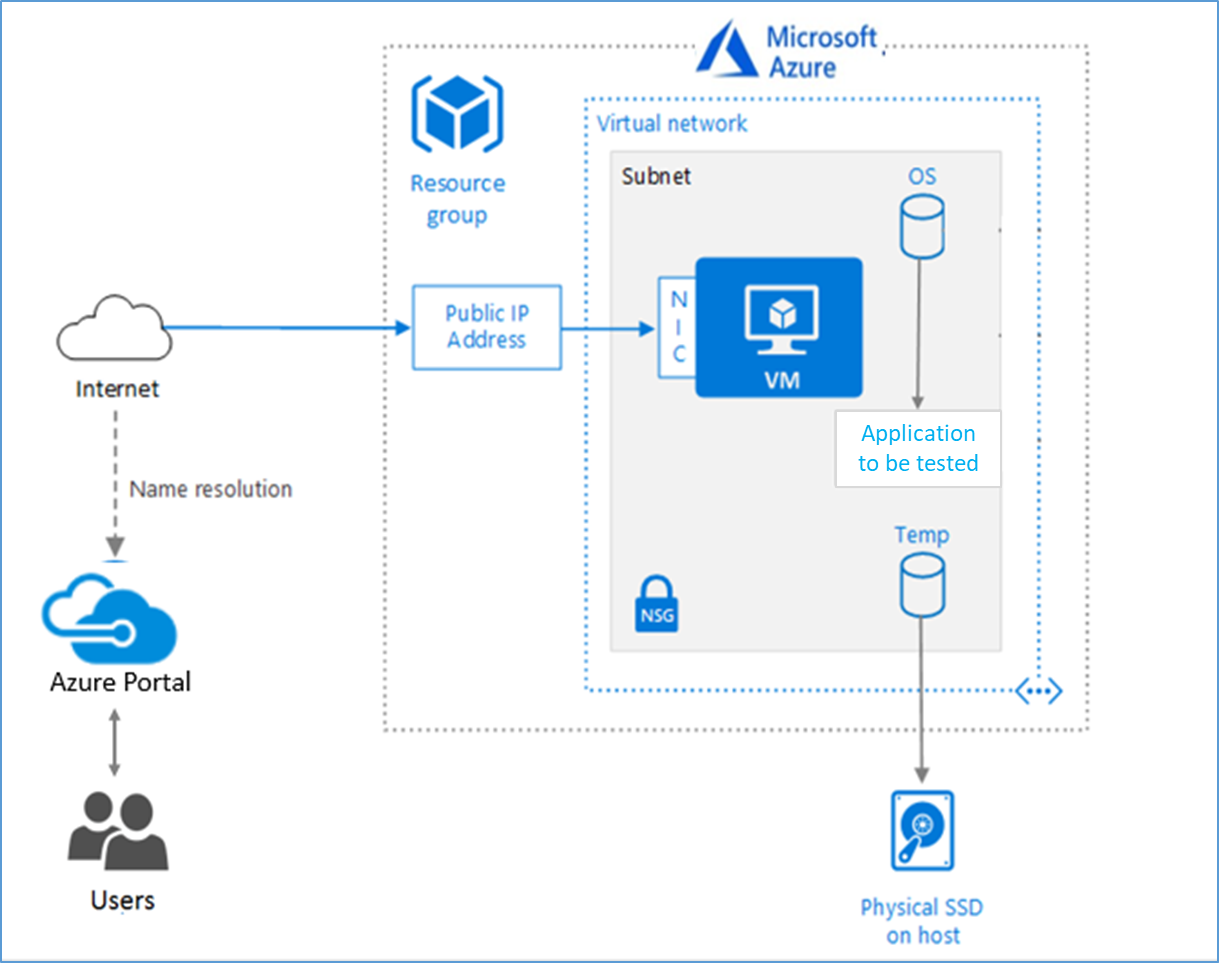

The below Architecture explains the virtual machine running on an Azure Platform

2.2 Azure Virtual Machine (VM)

A VM is a virtualized instance of a computer that can perform almost all of the same functions as a computer, including running applications and operating systems.

An Azure VM gives the flexibility of virtualization without having to buy and maintain the physical hardware that runs it. However, user still need to maintain the VM by performing tasks, such as configuring, patching, and installing the software that runs on it.

Things to be considered before deploying a VM,

• The names of the application resources
• The location where the resources are stored
• The size of the VM
• The operating system that the VM runs
• The configuration of the VM
• The related resources that the VM needs

There are different sizes and options for the Azure virtual machines one can use to run apps and workloads. Depending on the workload user has to choose the appropriate VM size or complete list check this https://docs.microsoft.com/en-us/azure/virtual-machines/sizes/.

To evaluate the performance of Samadii-Plasma on Azure Platform , NVv3, NCasT4_v3, NCv3 , NDv4 virtual machines are deployed .

To Analyse the performance of Samadii-Plasma on Azure Platform below VM’s are deployed.

4) Standard_ND96asr_v4: This VMs is powered by NVIDIA Ampere A100 Tensor Core GPUs and 96 physical 2nd-generation AMD Epyc™ CPU cores (2.44GHz). The “ND96asr_v4” VM has 8 GPUs with 40 GB of memory each and is supported by 96 AMD processor cores with a total memory of 921GB. Each GPU features NVLINK 3.0 connectivity for communication within the VM.

3 Create a Virtual Machine on Azure Platform

Sign into Azure

Sign into the Azure portal by using https://portal.azure.com/

Free Trial subscriptionsaren't eligible for limit or quota increases. If user have aFree Trial subscription, user can upgrade to aPay-As-You-Gosubscription

After the successful sign in or sign up, one has to upgrade the Azure subscription to Pay-As-You-Go to deploy a Virtual machine. For deployment, the user must have regional vCPU quota which can be obtained by raising a request.

The step-by-step procedure to increase the vCPU quota is given below,

https://docs.microsoft.com/en-us/azure/azure-portal/supportability/per-vm-quota-requests

The step-by-step procedure to deploy Virtual machine is given below,

1. Type virtual machines in the marketplace search.
2. Under Services, select Virtual machines.
3. In the Virtual machines page, select Create Then Virtual machine.

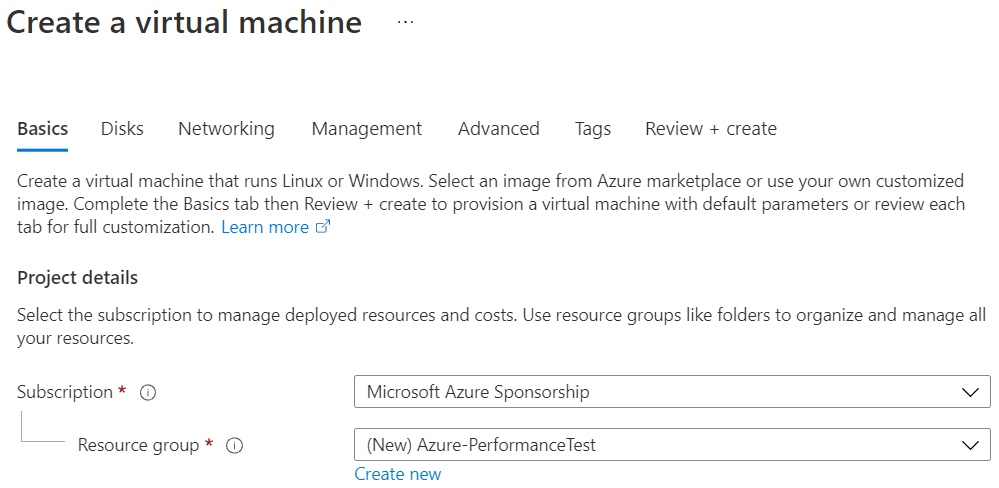

4. In the Basics tab, under Project details, make sure the correct subscription is selected and then choose to Create new resource group. Type Azure- Performance Test(user choice) for the name.

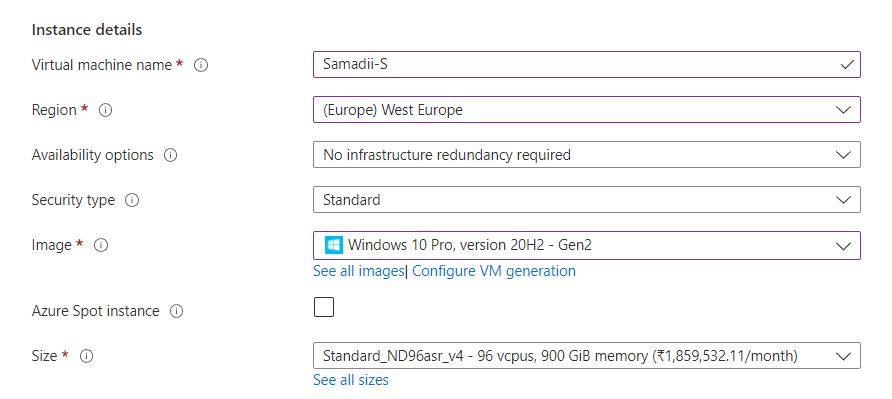

5. Under Instance details, type Azure-VM (user choice) for the Virtual machine name and choose West Europe for your Region. Choose Windows 10 pro, Version 20H2-Gen2 for the Image and Standard ND96asr v4 for the Size (user choice). Leave the other defaults.

Note:

• Region must be decided based on where you are going to deploy a Virtual machine. To avoid the network latency, the region should be near to the location where the VM is to be deployed.
• Image selection is of user choice based on the application user can choose the image (Windows 10, Linux based OS and Windows Server)

6. Under Administrator account, provide a username, such as Azureuser and a password. The password must be at least 12 characters long and meet the defined complexity requirements.

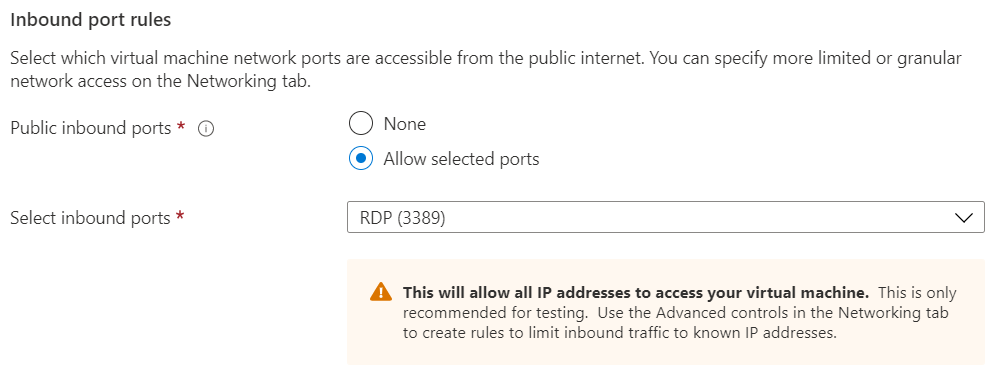

7. Under Inbound port rules, choose Allow selected ports and then select RDP (3389) and HTTP (80) from the drop-down.

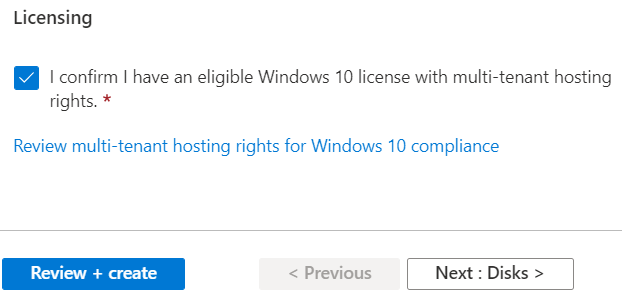

8. Under the Licencing click the check box

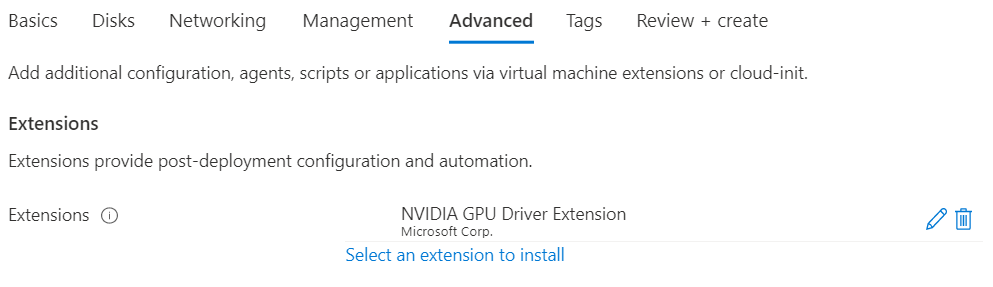

9. In Advanced tab, under the Extensions click Select an extension to install, select NVIDIA GPU Driver Extension (user choice)

10. Leave the remaining defaults and then select the Review + create button at the bottom of the page.
11. After validation runs, select the Create button at the bottom of the page.

12. After deployment is complete, select Go to resource.

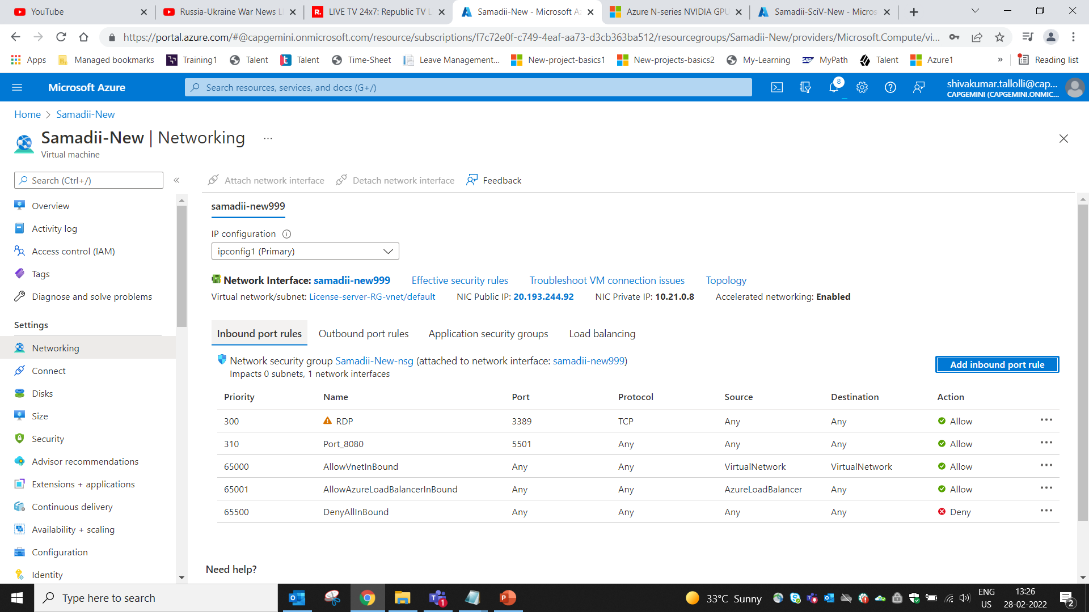

13. Add inbound and outbound port rules with Port # 5501

3.1 Connect to virtual machine

Create a remote desktop connection to the virtual machine. These directions tells user how to connect to a VM from a Windows computer. On a Mac, user need an RDP client such as thisRemote Desktop Clientfrom the Mac App Store.

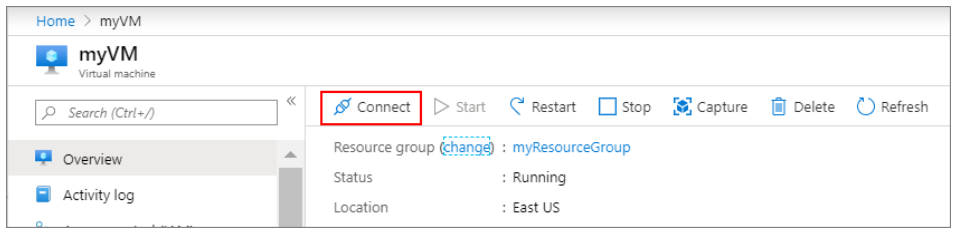

1. On the overview page for a virtual machine, select the Connect button then select RDP.

2. In the Connect with RDP page, keep the default options to connect by IP (Internet Protocol) address, over port 3389, and click Download RDP file.
3. Open the downloaded RDP file and click Connect when prompted.
4. In the Windows Security window, select More choices and then Use a different account. Type the username as localhost\username, enter the password created for the virtual machine, and then click OK.
5. User may receive a certificate warning during the sign-in process. Click Yes or Continue to create the connection.

3.2 Install Nvidia Drivers

To take advantage of the GPU capabilities of Azure N-series VMs backed by NVIDIA GPUs, user must install NVIDIA GPU drivers.

In two ways user can install the drivers,

• TheNVIDIA GPU Driver Extensioninstalls appropriate NVIDIA CUDA or GRID drivers on an N-series VM. Install or manage the extension using the Azure portal.
• Install NVIDIA GPU drivers manually. (For the manual installation procedure follow https://docs.microsoft.com/en-us/azure/virtual-machines/windows/n-series-driver-setup/)

4 Install Samadii-Plasma Application on Virtual Machine:

4.1 License Manager Installation

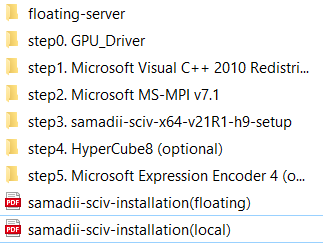

Data provided by ISV will contain all the installation files required for Samadii-Plasma as shown below.

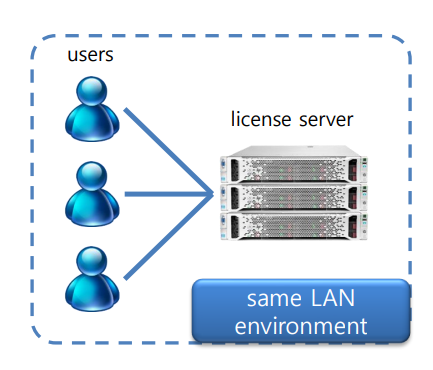

1) samadii-lm is the floating license server program. It is a windows service program that allows multiple users to access the license in the same LAN environment. Licence server needs to be installed in the Licence server VM which is different from the client VM where actual Samadii-Plasma application will be installed.

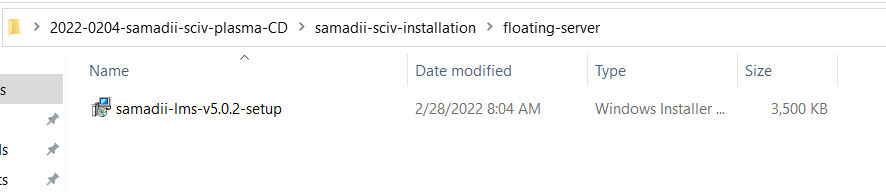

2) Install the Samadii-Plasma License Server using the licence setup file “samadii-lms-v5.0.2-setup” provided in the input data.

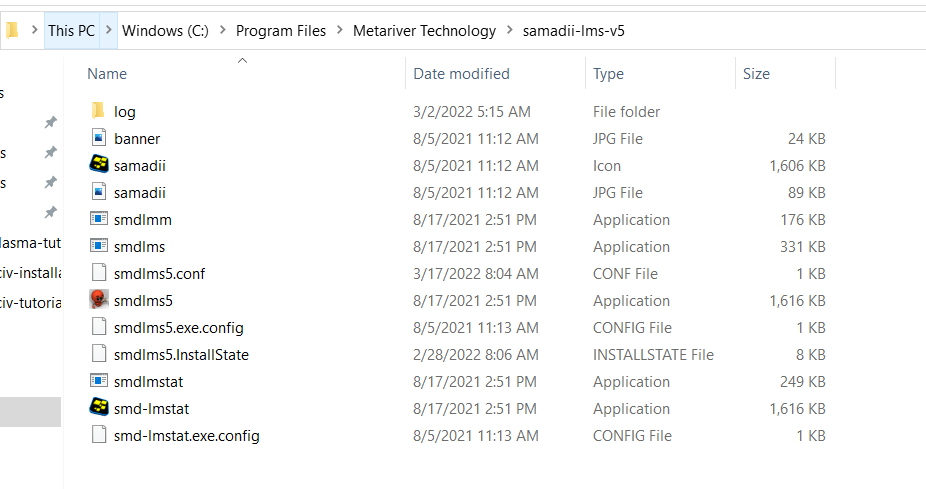

3) Once the licence server is setup, a folder with name Network License Manager will be created in the path “C:\Program Files\Metariver Technology\samadii-lms-v5 “

4) Please run Control Panel -> System and Security -> Allow apps in Windows Firewall.

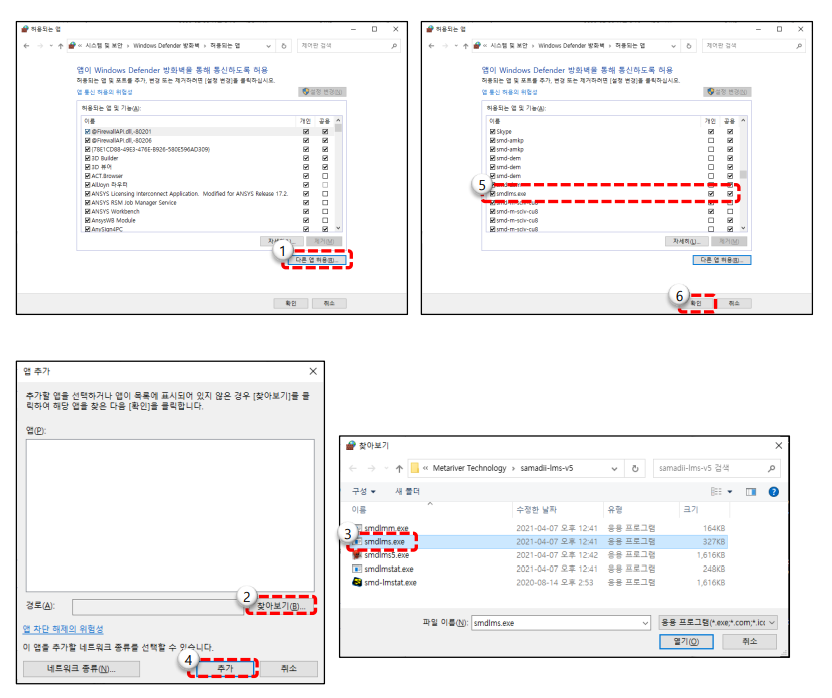

5) In the licence Server VM add the Samadii-Plasma licence manager exe file to firewall exceptions as shown below in the windows defender firewall.

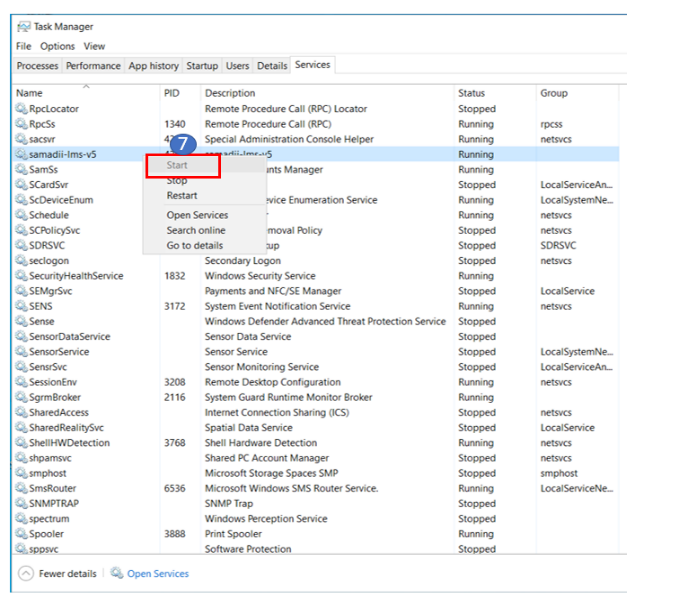

6) Start the Samadii – Plasma licence services in Task manager as show below.

7) Share the log file generated in the previous step to ISV, to generate the licence key file.

8) Copy the issued license file provided by ISV to the folder where the server is installed.

C:\Program Files\Metariver Technology\samadii-lms-v5.

4.2 Product Installation procedure

There are few pre-requisites to be followed before installing the Samadii-Plasma

1) Once the Client VM is deployed, add inbound and outbound rules for the port no 5501 in the windows firewall settings of the Client VM.

2) Below softwares / hardwares are required for Samadii apps to work.

1. Microsoft Windows 10(x64) OS
2. nVidia CUDA-enabled GPU(s) : Tesla/Quadro/GeForce series
3. Microsoft Visual C++ 2010 Redistributable Package SP1
4. Microsoft MS-MPI v7.1
5. Microsoft .Net framework 4.5
6. samadii™ setup files

4.3 Samadii Plasma Installation

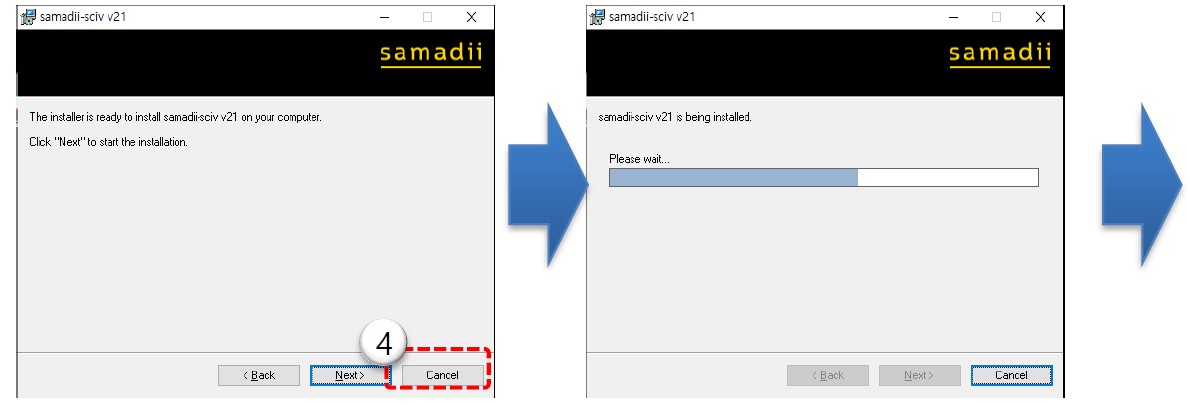

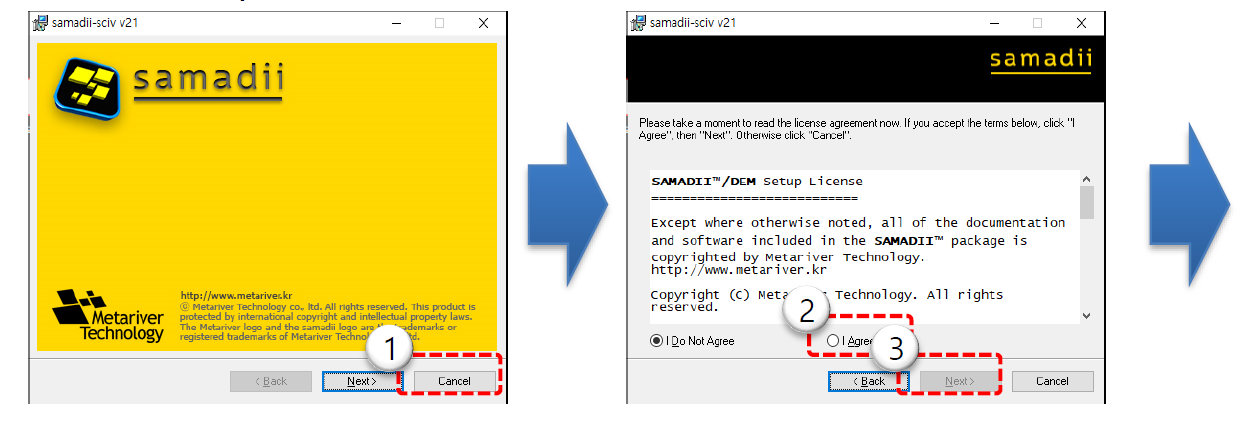

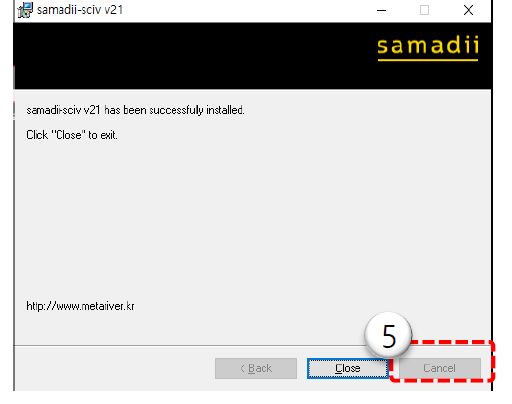

Click on the setup file and start the Installation.

4.4 License server configuration with Samadii-Plasma application

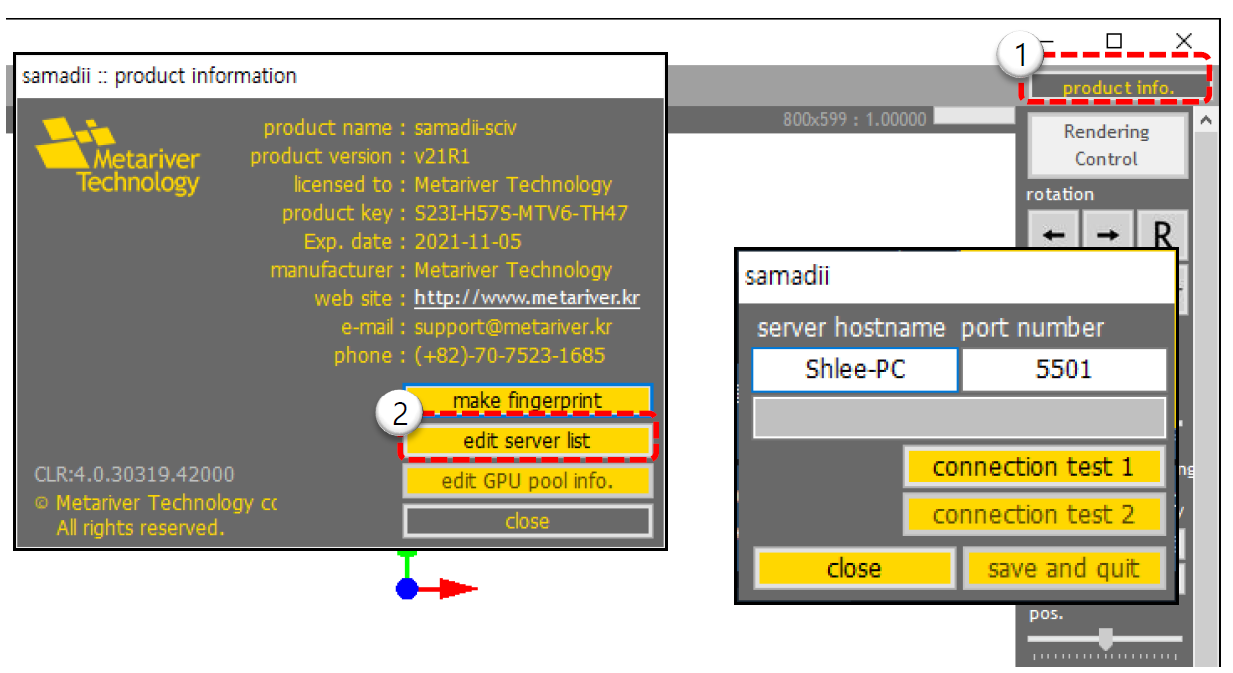

After installing the Samadii-Plasma, execute the application and open the “edit server list” window and enter the licence server name / ip address to make sure the client VM establishes the network connection with the license server.

In “host name” enter the floating server name or IP address and in the “port number” enter the default port number that is 5501.Then check the connection with “Connection test 1” and “Connection test 2” and click on save and quit.

5 Performance results of Samadii-Plasma on Azure Virtual Machines

5.1 Samadii-Plasma overview:

Samadii Plasma particle-based solution is packed with improved performance. In Samadii-Plasma it is possible to analyse the plasma process through ion & electron particles. Samadii-Plasma provides high-performance and advanced plasma physics simulation. Samadii-Plasma used For Analysis of ion and electron behaviour in an electromagnetic field.

Plasma is a gaseous mixture of negatively charged electrons and highly charged ions created by electro-magnetic field and it is applied as essential core technology for film deposition, etching and surface functionalization in manufacturing of value-added products including devices, components and equipment’s for prospective industries including semiconductor, flat panel displays, digital electronics etc.

Plasma is a complex phenomenon that the movement of particles and ions mutually influences electromagnetic field. In plasma states, the temperature of gas particles can be measured very different because the neutral, ions, electrons have different mobility in electromagnetic fields. Also, the collisions between the particles occurs constantly which cause a plasma reaction (ionization, excitation, etc) as well as chemical reaction.

Calculation of the plasma with direct simulation based on particle-based method requires large amount of computational time. Therefore, the grid-based plasma flow analysis regards that the nature of the ions and electrons as two or more fluids. But basically, plasma is composed of particles, and it is essentially based on the analysis of particle method to correctly interpret the plasma reaction due to the collisions between these particles. More advanced plasma analysis is available due to high-speed electromagnetic field analysis capabilities and particle-based gas analysis solution of samadii/plasma based on the GPU.

5.2 Samadii-Plasma on Azure Platform

To carry out the Samadii-Plasma simulations, the right hardware with the latest CPUs and GPUs are required. Microsoft partnered with Nvidia provides the required and suitable Infrastructure and hardware on the Azure cloud platform. It provides the latest and fastest computes capabilities for both CPU and GPU-intensive workloads.

5.3 Samadii-Plasma Performance Results

5.3.1 Model Details

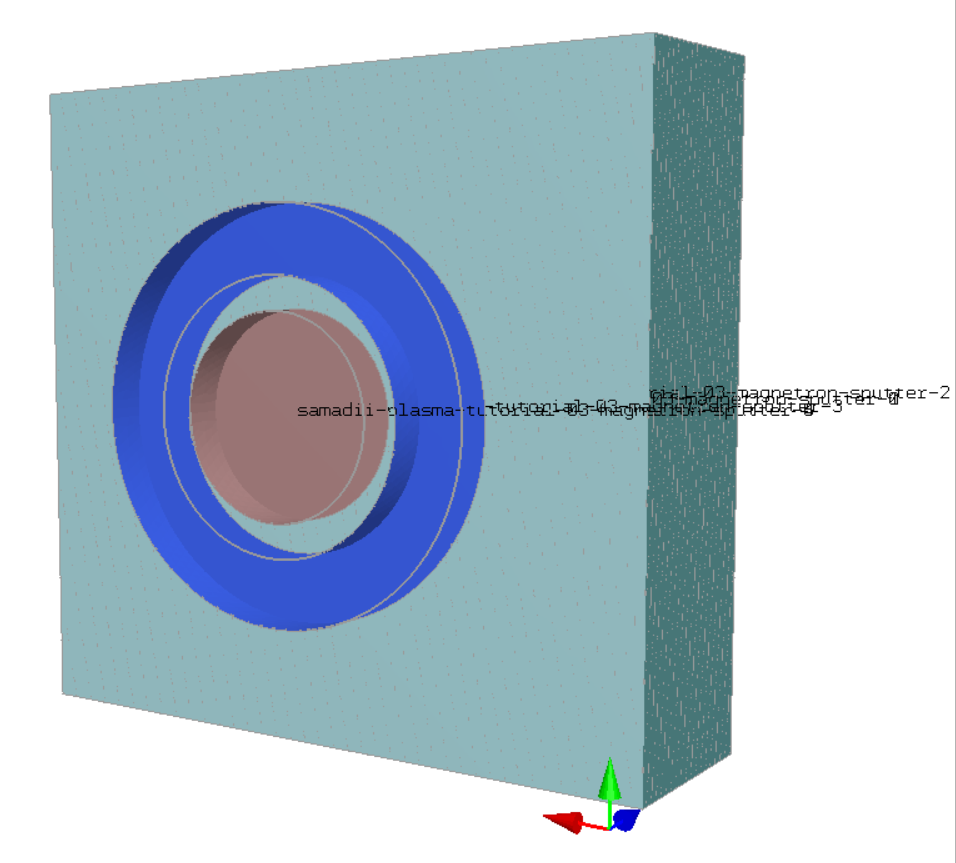

1) Magnetron-Sputter

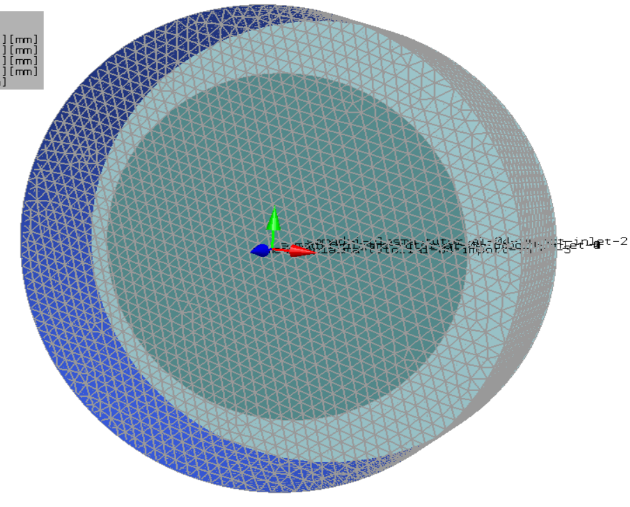

2) Import-Inlet

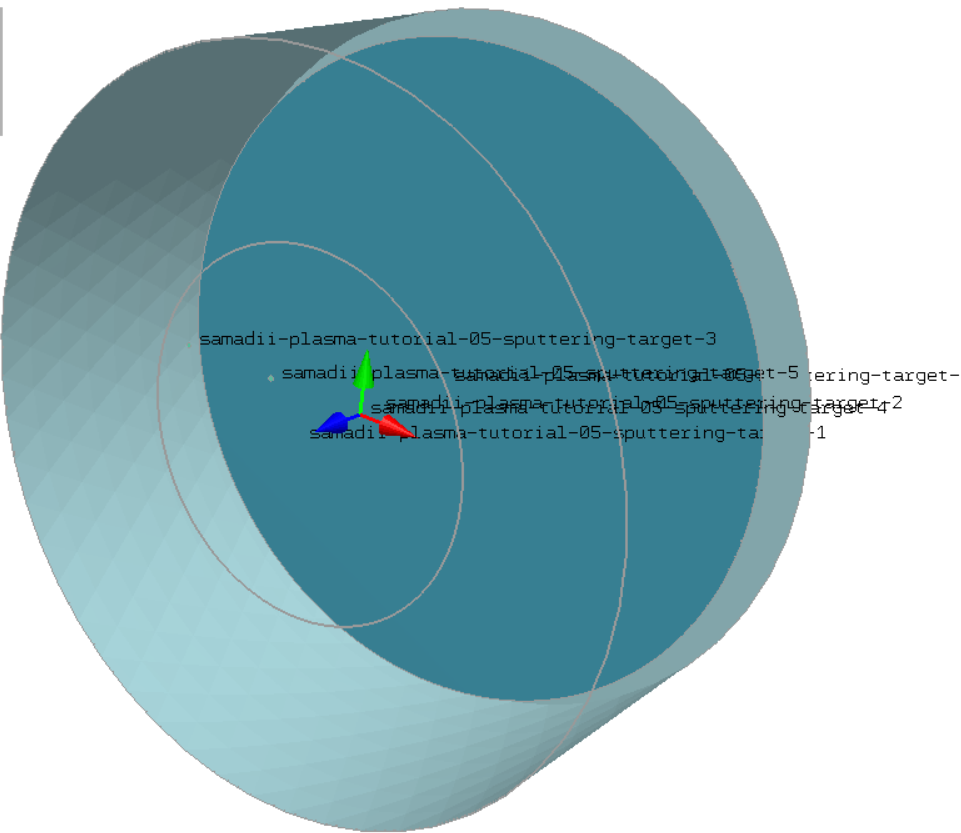

3) Sputtering-target

5.3.2 Performance Results

Performance tests have been performed on the provided models, and the elapsed run time and speed up factors have been determined and presented below.

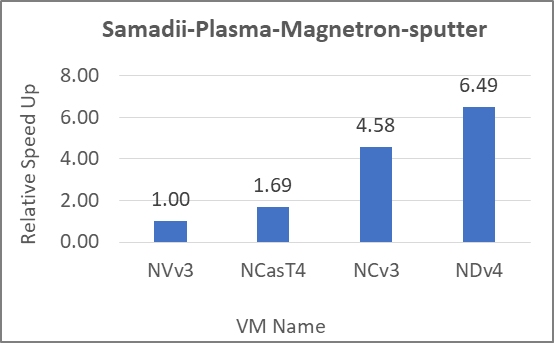

1) Magnetron-Sputter

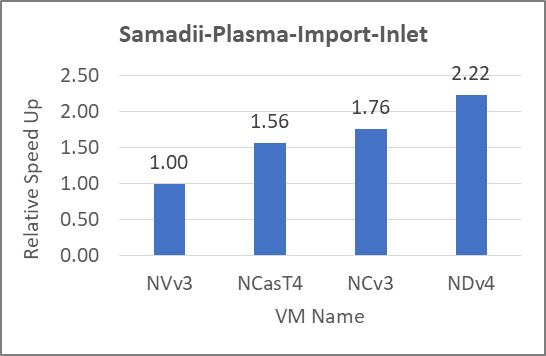

2)Import-inlet

3) Sputtering-Target

6 Azure Cost

For the below cost reports, the application installation time is not considered and only the time taken to run all provided models in Samadii-Plasma on NDv4, NCv3, NCasT4, NVv3 virtual machines are considered, and license cost is not included.

The Hourly rates reported are subject to change. For the current rate please refer the link. “https://azure.microsoft.com/en-in/pricing/calculator/”

1) Magnetron-sputter

2) Import-inlet

3) Sputtering-Target

7 Summary

1. Samadii-Plasma Application is successfully deployed and tested on NDv4, NCv3, NCasT4 & NVv3 series Azure Virtual Machines.
2. For Smaller models, we can observe that the NcasT4 VM will be suitable VM for Plasma simulations which is scaling up good and is cost efficient
3. For Larger Models, we can see that the NCv3 and NDV4 Virtual Machines are giving good speed-up and performance results

8 Running Samadii Plasma V21 R1 on Azure Virtual Machines:

Users can reach out to any of the following contacts for the further support.

1. Contact through Metariver: support@metariver.kr
2. Contact through Microsoft: Microsoft global black belt team
3. Contact through Capgemini: AzureHPC-Certification@capgemini.com
